Homemade Folding Tomato Cage

This homemade tomato cage is easy to make, inexpensive, and has the added benefit of being foldable for easy storage at the end of the growing season. Althought the standard store-bought wire tomato cages work well, they take up quite a bit of storage space. Making your own foldable tomato cage is easy, even for a beginner.

Folding tomato cage plans:

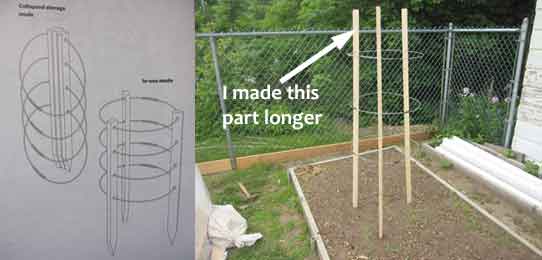

The plans for the tomato cage came from a book titled The Backyard Homestead Book of Building Projects (on Amazon) by Spike Carlsen. There are 76 projects in the book but the tomato cage is the only one we've tried so far. It was quick, simple, inexpensive, and . . . it's collapsible. The only changes made to the original design was to extend the length on the top of the stakes and eliminate one of the rungs of wire. The overall length of the tomato cage is a bit longer due to the sandy nature of our soil. The image below shows the page from the book and the finished tomato cage.

homemade foldable tomato cage

Making the homemade tomato cage:

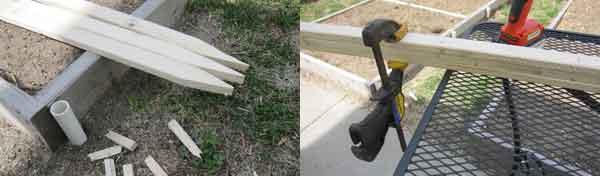

The stakes are cut from three eight-foot 1 x 2s. You might be able to use 1 x 3s, but lumber any wider than that will make it more difficult to bend the wire into a circle. It's best to cut the pointy end of the 1 x 2 stake first, then line up the pieces and cut them to length. Our stakes are just over five feet long, but if you have clay or loamy soil you can probably make them much shorter. The holes for the suppoprt wire needs to line up fairly close and the easiest way to do that is by lining up the tops of the stakes, holding the pieces together with a quick release clamp, then drilling the holes through all three pieces at once. The rungs are spaced 12" apart which is the same spacing as the standard store-bought wire tomato cages.

tomato cage stakes
tomato cage support wire

Tomato cage wire:

The wire for the tomato cages is Number 9 wire that's sometimes used with row cover. The book recommended a 45" length of wire for each rung, but I just made it the same diameter as the wire tomato cages and added about 12" to the overall length in order to twist the ends of wire together. The ends of the wire are taped together just because, but that's probably not necessary. The book suggested four rungs, but our tomato cages only have three rungs and they've always offered good support, but that also depends on which toamto variety you're planting.

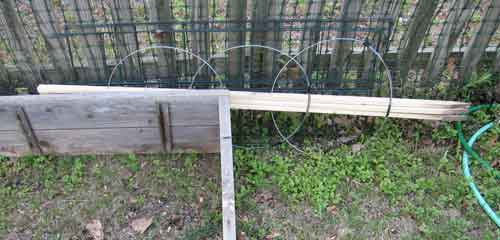

folded tomato cage

The folding tomato cages will be used in addition to the store bought cages for a couple of growing seasons, and if they work well, may take the place of the store bought tomato cages altogether. They're easy and inexpesive to make and the space saving aspect is a definite plus.
